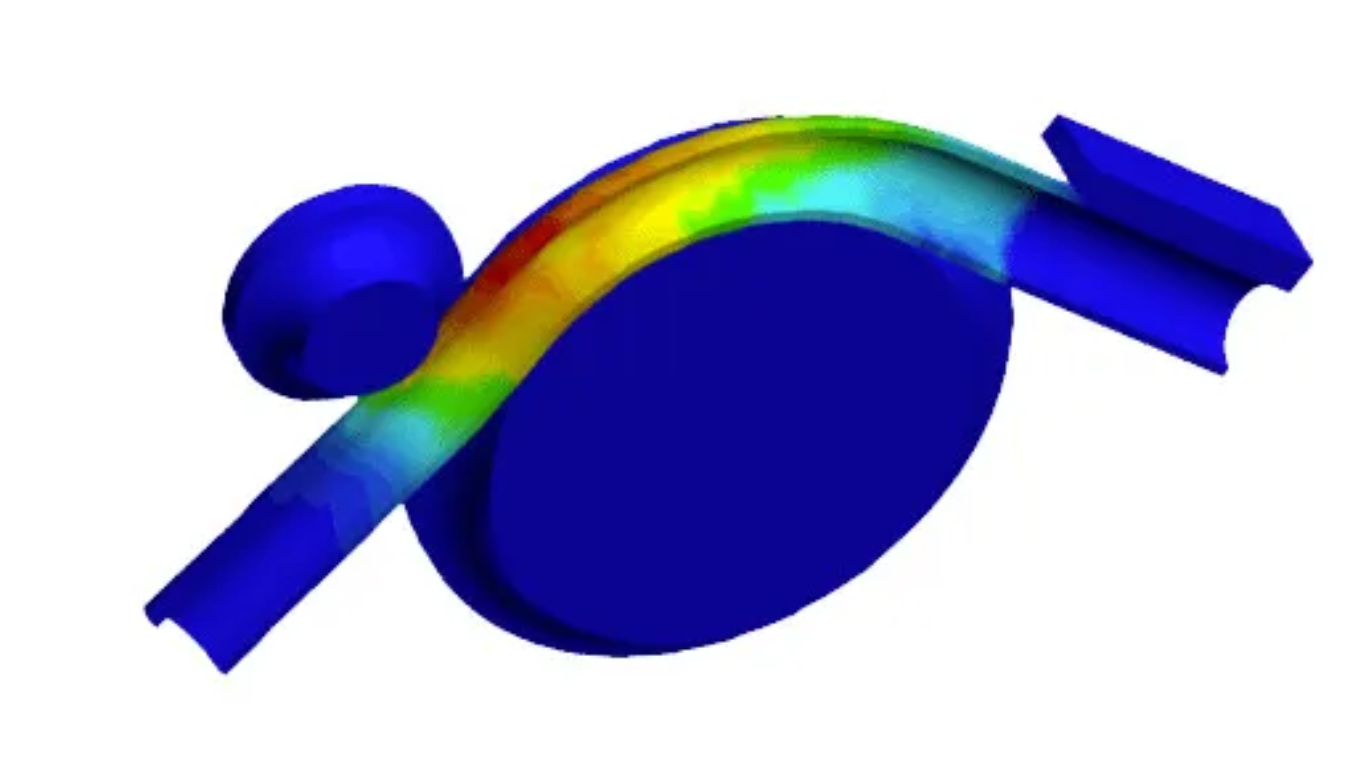

Structural and construction failures in the United States are estimated to cost approximately $14.4 billion annually, according to research. A significant portion of these failures stem from overlooked or poorly understood bending stress – the silent force that acts beneath the surface of beams, girders, and structural frames. Whether you’re designing bridges, skyscrapers, or offshore platforms, failing to account for bending stress early in the engineering process can lead to catastrophic results.
What Is Bending Stress?
Bending stress, sometimes referred to as flexural stress, arises when a structural element is subjected to a load that causes it to bend. This internal force is a response to the bending moment – the combination of load and distance that tries to deform the material.
Stress increases with distance from the neutral axis, and if the stress exceeds material limits, yielding or fracture may occur. The top surface of the beam compresses while the bottom surface stretches, creating opposing internal stresses. The farther from the center of the beam’s height (the neutral axis), the more significant the stress. If the material cannot withstand these internal forces, it will crack or even collapse.
In practical engineering, understanding bending stress is not optional—it’s a critical aspect of ensuring safety, efficiency, and compliance with structural codes.
Why Early Bending Stress Analysis Matters
In the conceptual or preliminary design phase, engineers make key decisions regarding materials, geometry, and load paths. An early bending stress analysis informs these decisions by:
- Preventing overdesign or underdesign: Too conservative? You waste materials and money. Too optimistic? You risk failure.
- Ensuring code compliance: Standards such as Eurocode 3, ASME VIII, and DNV OS-C101 require a bending stress check.
- Reducing redesign cycles: Discovering bending stress issues during late-stage testing or construction can halt projects and cause expensive delays.
Early-stage bending stress analysis is especially critical in industries like offshore and civil infrastructure, aerospace, where loads are variable and often extreme.
The Mechanics of Bending Stress
When analyzing bending stress, engineers rely on flexural formulas that relate internal stress to external loading. The most widely used equation is:
𝜎=𝑀𝑦𝐼
Where:
- σ = bending stress
- M = applied moment
- y = distance from the neutral axis
- I = moment of inertia of the cross-section
This equation helps determine the maximum stress location and compare it to the yield strength or ultimate tensile strength of the material. If σ exceeds the yield strength, permanent deformation occurs; if it exceeds the tensile strength, fracture is imminent.
Key Factors That Influence Bending Stress
Several factors directly affect how bending stress develops and is distributed across a structure:
1. Material Properties
- Modulus of Elasticity (E): Determines how much a material deflects under load. Higher E = stiffer material = lower deflection.
- Yield Strength: The stress at which permanent deformation begins.
- Ductility: More ductile materials can withstand higher deformation without cracking.
2. Cross-Sectional Geometry
The shape and size of the beam or structural member are critical. Elements with larger moment of inertia values can resist higher bending moments.
For example, an I-beam has a much higher bending resistance than a solid rectangular beam of the same weight, due to its geometric efficiency.
3. Loading Conditions
- Pure Bending: Evenly distributed loads result in symmetric deflection and stress.
- Transverse Bending: Uneven or eccentric loads create non-uniform stress and complex deflection patterns.
- Dynamic Loads: Varying or cyclic loads (as seen in fatigue conditions) intensify bending effects.
4. Environmental Factors
For example, thermal gradients can induce bending even in statically balanced structures, while corrosion can reduce cross-sectional area and increase local stress. Regular monitoring is necessary to adapt to real-world conditions.
Tools for Measuring and Simulating Bending Stress
Modern engineering relies on both physical tools and simulation software to evaluate bending stress:
• Strain Gauges
These sensors detect deformation on the surface of materials, allowing engineers to calculate internal stress.
• Load Cells
Used to measure the actual force applied on structural elements in real-time applications.
• Extensometers
Devices that measure small displacements or elongations during mechanical testing.
• Finite Element Analysis (FEA) Software
SDC Verifier not only simulates complex load cases, but also automatically calculates bending stress and verifies it against standards like DNV, Eurocode, and FEM 1.001 — helping engineers flag high-risk areas in early design.
Common Bending Stress Scenarios in Construction
Underestimating real-world load distributions or support conditions can lead to excessive deflection, overstressing, or serviceability issues such as cracking in concrete structures.
• Beams and Girders
From floor systems to bridge spans, beams are frequently under transverse loads. Incorrect assumptions about loading can lead to cracking or deflection.
• Cantilevered Structures
Cantilevered structures experience high moments near the fixed support. Without proper support design, bending stress can quickly exceed safe limits.
• Slabs and Plates
Flat components in buildings and machinery can undergo significant bending under load—especially in floors and ceilings with large spans.
Design Strategies to Reduce Bending Stress
1. Optimize Geometry
Use I-beams, hollow sections, or tapered profiles to increase moment of inertia without excessive weight.
2. Material Selection
Choose materials with high modulus and yield strength values. High-strength steel, carbon fiber, or reinforced concrete are popular choices.
3. Add Supports
Adding intermediate supports reduces the span length and moment, but also alters load paths and redundancy — both must be evaluated in structural design.
4. Distribute Loads Evenly
Design load paths that avoid point loads or eccentricities, reducing peak bending moments.
Conclusion
Bending stress often goes undetected until deformation occurs. Without early analysis, it can lead to costly rework or structural compromise — especially in fatigue-sensitive applications.
By analyzing bending stress early in the design phase, using advanced tools like FEA software, and integrating smart material and geometry choices, engineers can create structures that are safer, more durable, and cost-effective.
